freescan trak nova features
All in one scanning system
Detachable Handheld Scanner
Dynamic Tracking
Integrated Video Photogrammetry
Completely Wireless
Effortlessly Portable
FreeScan Trak Software
Multi-Scan Modes Data Fusion
The system seamlessly combines wide-range laser scanning for overall structure capture with dynamic tracking for detailed local features, integrating broad coverage and fine details into a unified dataset.
Intelligent Resolution
Automatically adjusts mesh resolution based on the object’s curvature, ensuring clearer and more detailed features.
AI Feature Recognition
Intelligent boundary detection enables fast, accurate scanning and measurement of round and square holes, delivering high-accuracy hole data.
Inspection Module
Integrated inspection module, certified by PTB, for reliable, high-quality full-size inspection.

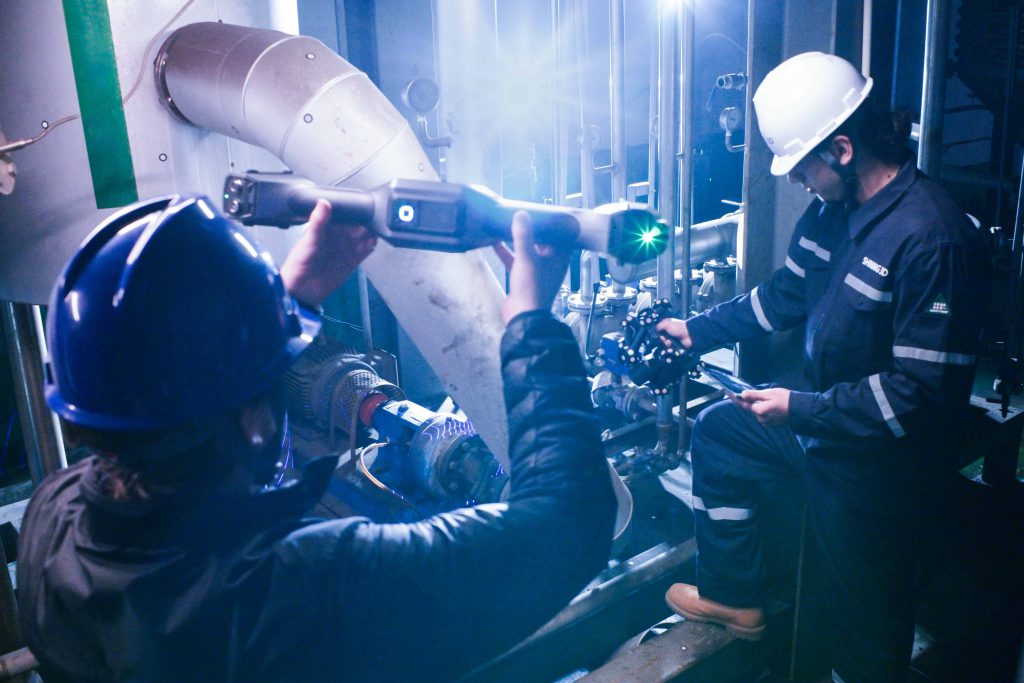

Dynamic Tracking Scan:
Compact and Agile
Dynamic Tracking is a revolutionary function in the field of 3d scanning. This ability enables you to keep scanning. Using the targets that have already been saved into the target frame, provided you can see enough targets you can scan on the move. This saves you time without having to create new scans every time you have to move the tracker as you can leapfrog around the object.
With this feature, you are able to move the system into difficult areas where you traditionally would not have been able to acquire data. Whether you have someone holding the tracker, moving the tracker on your own or changing the pitch/height of the tracker, this will significantly increase the quality of life whilst scanning from the simplest items, through to the most complex or large environments.

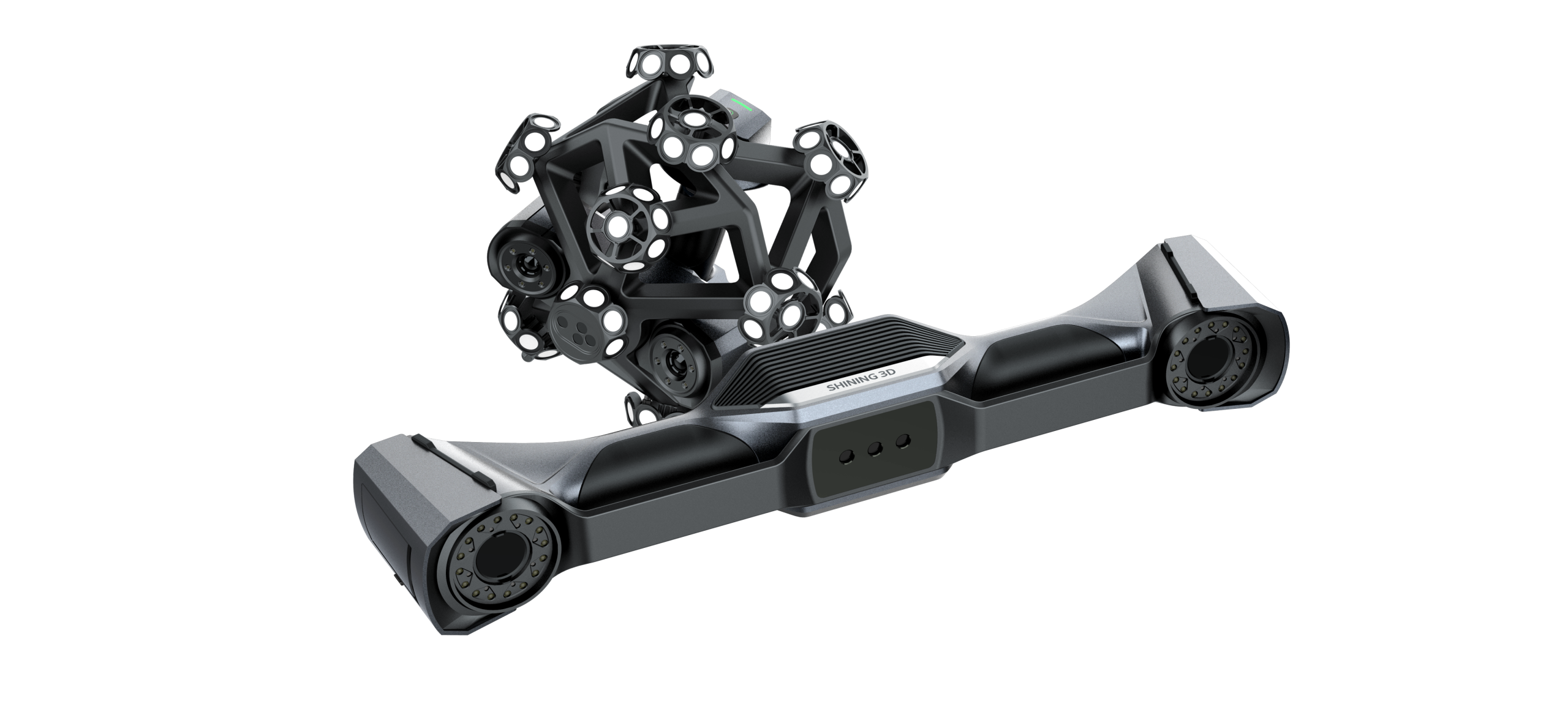

Flexible & Separable System
FreeScan Trak Nova includes a detachable handheld scanner. The tracker, FreeScan UE Nova, also serves as a handheld laser scanner with the largest FOV on the market, delivering unparalleled efficiency and flexibility.
- Large-scale scanning coverage with 2.6 × 2.2 m FOV
- Ultra fast scan speed
- Certified and guaranteed accuracy
Shining have provided information on two large scans that have been done with this system the first being the 40m wind turbine and the other a 120m scan of a mold in Germany with the scale bar being moved 40 times in the scan with a very impressive accuracy for the size of the scan.

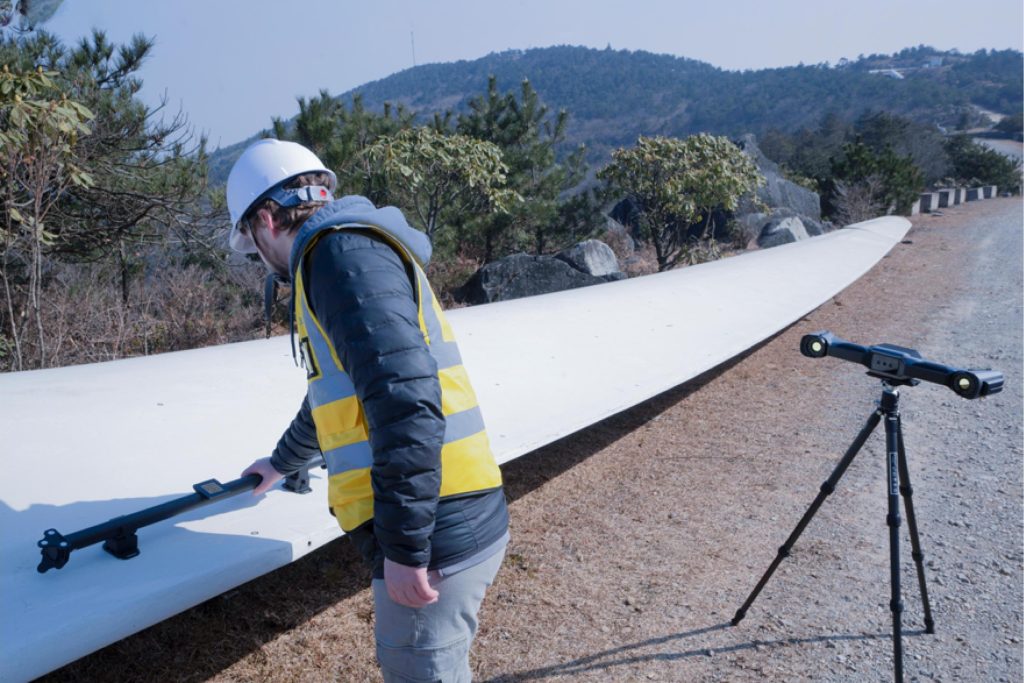

Video Photogrammetry (VPG)
FreeScan Trak Nova system features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
This functions by selecting the photgrammetry function and beginning the frame capture. Marker seperation is around the 500mm apart which means you can scan large objects with significantly less targets than other systems. If the item is large you can move the scale bar multiple times in this instance to ensure accuracy.
This mode also enables the re-use of the scale bar without the need to purchase more.

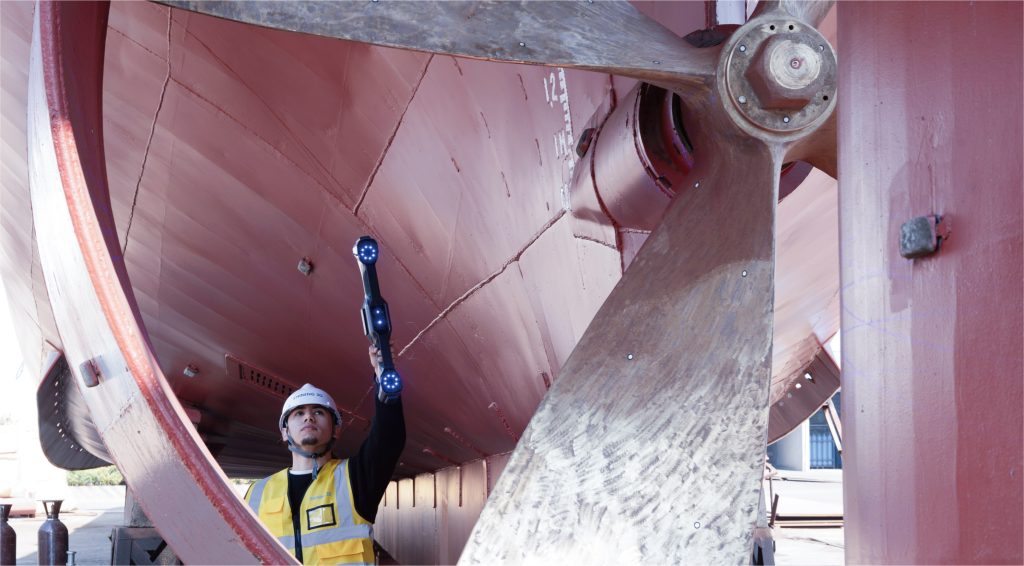

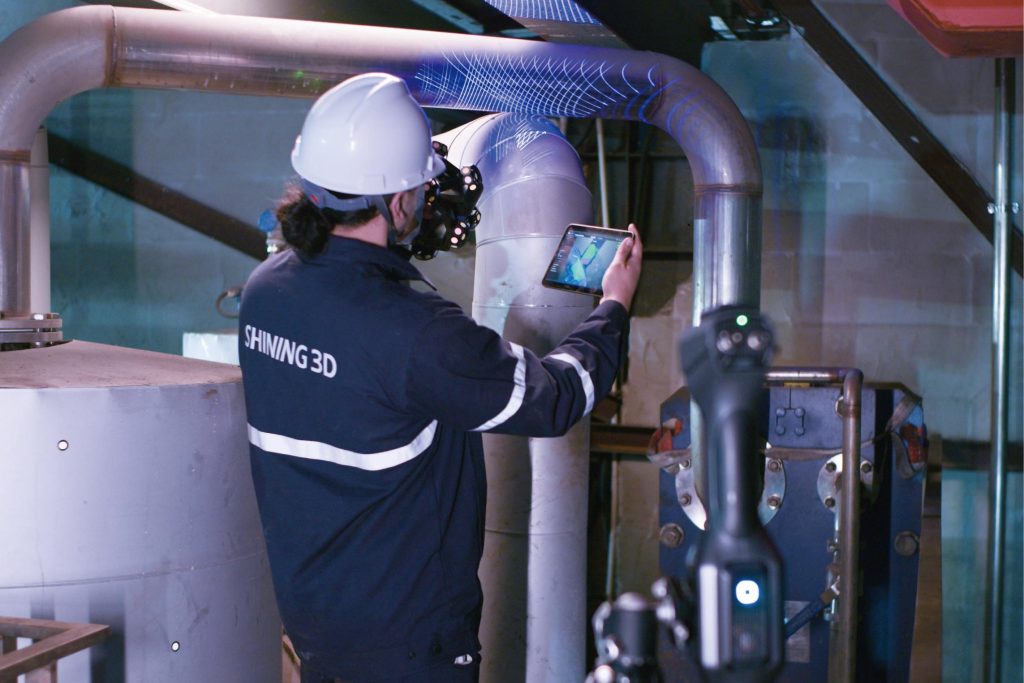

Free to Scan, Built to Perform
Integrated wireless modules: Achieve greater freedom when scanning large objects or in tight spaces, without the limitations of cables or external devices. This seamless integration allows for real-time transmission of scan data, ensuring high frame rates and stable data transfer.
Built-in computing modules: With advanced computing modules, both the tracking scanner and wide-range scanner ensure rapid and efficient processing.
Easy to Carry, Light to Move
Everything you need is neatly packed in one portable case, with a lightweight carbon fiber structure that ensures stability and reliable performance in any environment.
- TE Nova: 1.2 kg
- UE Nova: 1.6 kg

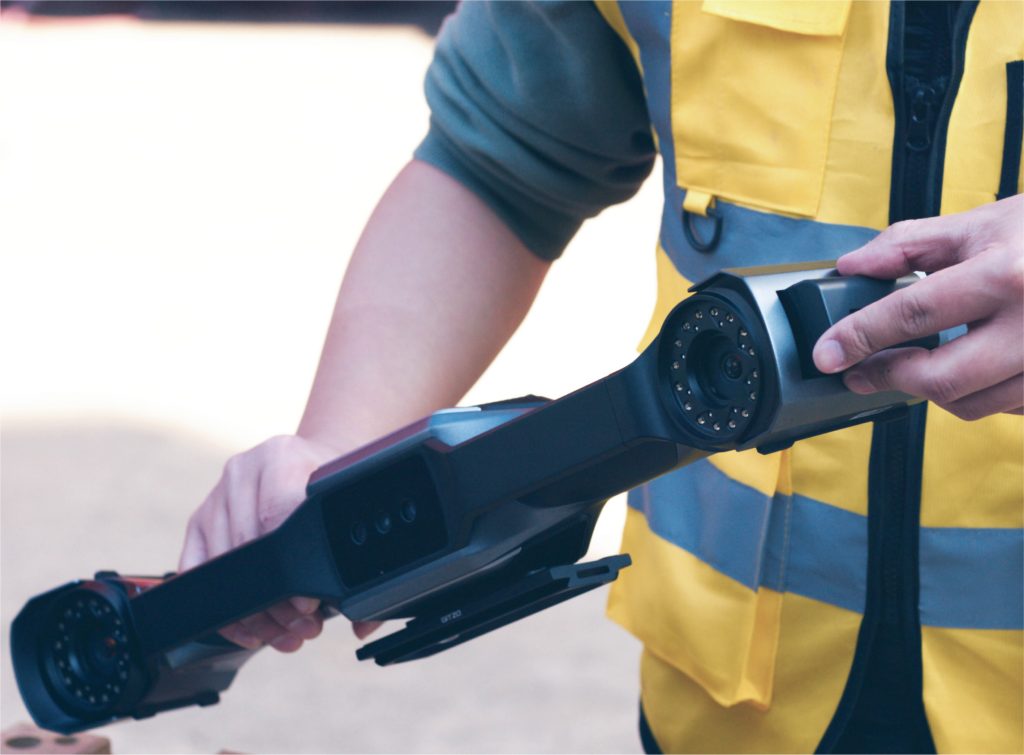

Keep Going with Swappable Batteries
For maximum convenience, FreeScan Trak Nova features detachable batteries for extended scanning time. Easily swap out batteries to keep your workflow uninterrupted, even during long projects or in remote locations.
