freescan UE Pro 2 features
Wireless and Portable
Ultra-Fast Scan Speed
With a rapid scan speed of up to 3,460,000 points/s, the FreeScan UE Pro2 doubles scanning efficiency compared to the previous generation.

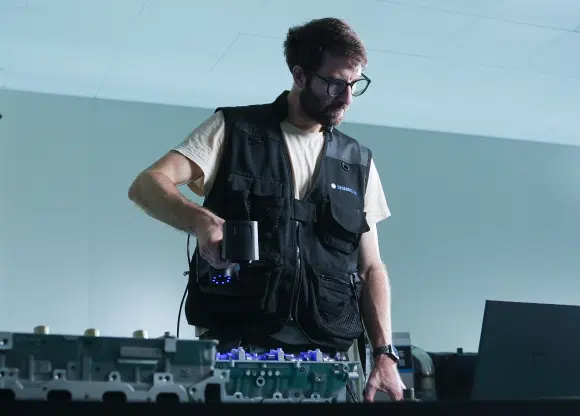

Quick On-Site Inspection
FreeScan UE Pro2’s integrated inspection module ensures rigorous quality control. It enables simplified operations and enhances fast quality checks on-site.
Integrated Video Photogrammetry
Utilizing SHINING 3D’s patented video-based photogrammetry without coded markers.
FreeScan Software
Real-Time Display of Mesh Data
Our streamlined software displays mesh data in real time during the scanning process, enhancing visual quality and saving time on meshing later.
Customised Scanning Template
Save time and ensure consistency by setting up your own scanning template. No need to set parameters manually.
Data Quality Visualization
Users can monitor scanning distance through laser line color or the LED indicator, and assess data quality with the real-time mesh indicator.
Flexible Resolution
EXScan enables you to change the resolution later according to your needs, without having to restart the project.
Double the Speed, Double the Productivity
With a scan speed up to 3,460,000 points/s, tasks are completed smoothly, enhancing productivity in inspection applications.
- Embedded Computing Module: Accelerates data capture and processing, reducing overall scanning time and computer workload.
- 50 Laser Lines: Ensures faster and more comprehensive scanning.
- High Frame Rate: Achieves up to 180fps for smooth and rapid data acquisition.
Certified and Guaranteed Results
With a volumetric accuracy of up to 0.02 mm + 0.015 mm/m using photogrammetry, the FreeScan UE Pro2 delivers consistent and reliable global accuracy and scanning results.
SHINING 3D’s Accuracy Laboratory, accredited by CNAS in accordance with ISO 17025, ensures rigorous calibration of optical metrology. Based on VDI/VDE 2634 guidelines, the laboratory guarantees the traceability of measurement processes and calibration results.

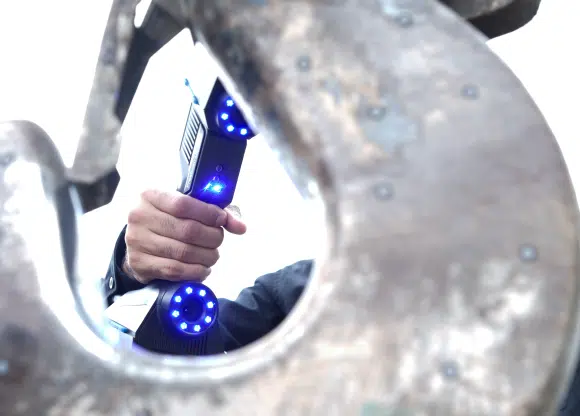

Scan Indoors and Outdoors
- The FreeScan UE Pro2 excels in both indoor and outdoor environments, making it versatile for any work setting.

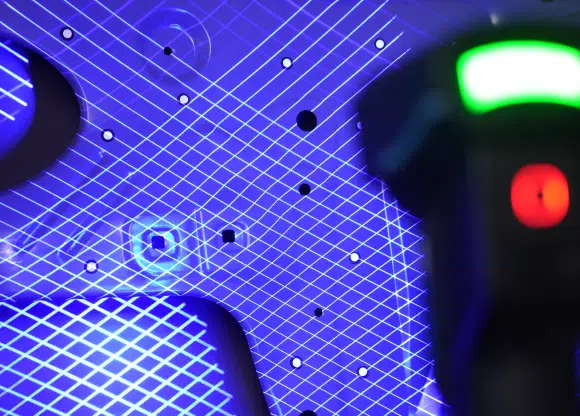

3 Functions for Versatile Applications
- High-speed scanning: 50 laser lines
- Detail scanning: 7 parallel laser lines
- Deep hole scanning: 1 laser line

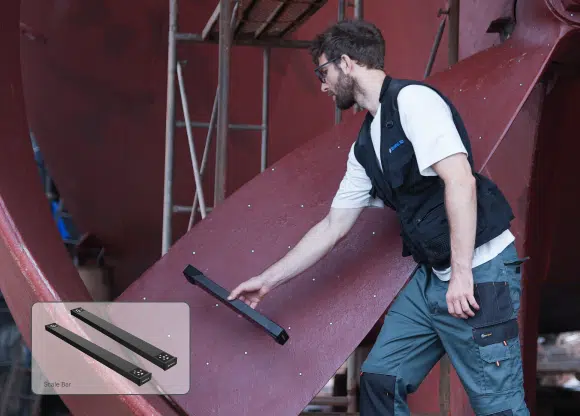

Video Photogrammetry (VPG)
FreeScan UE Pro2 features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers.
This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.

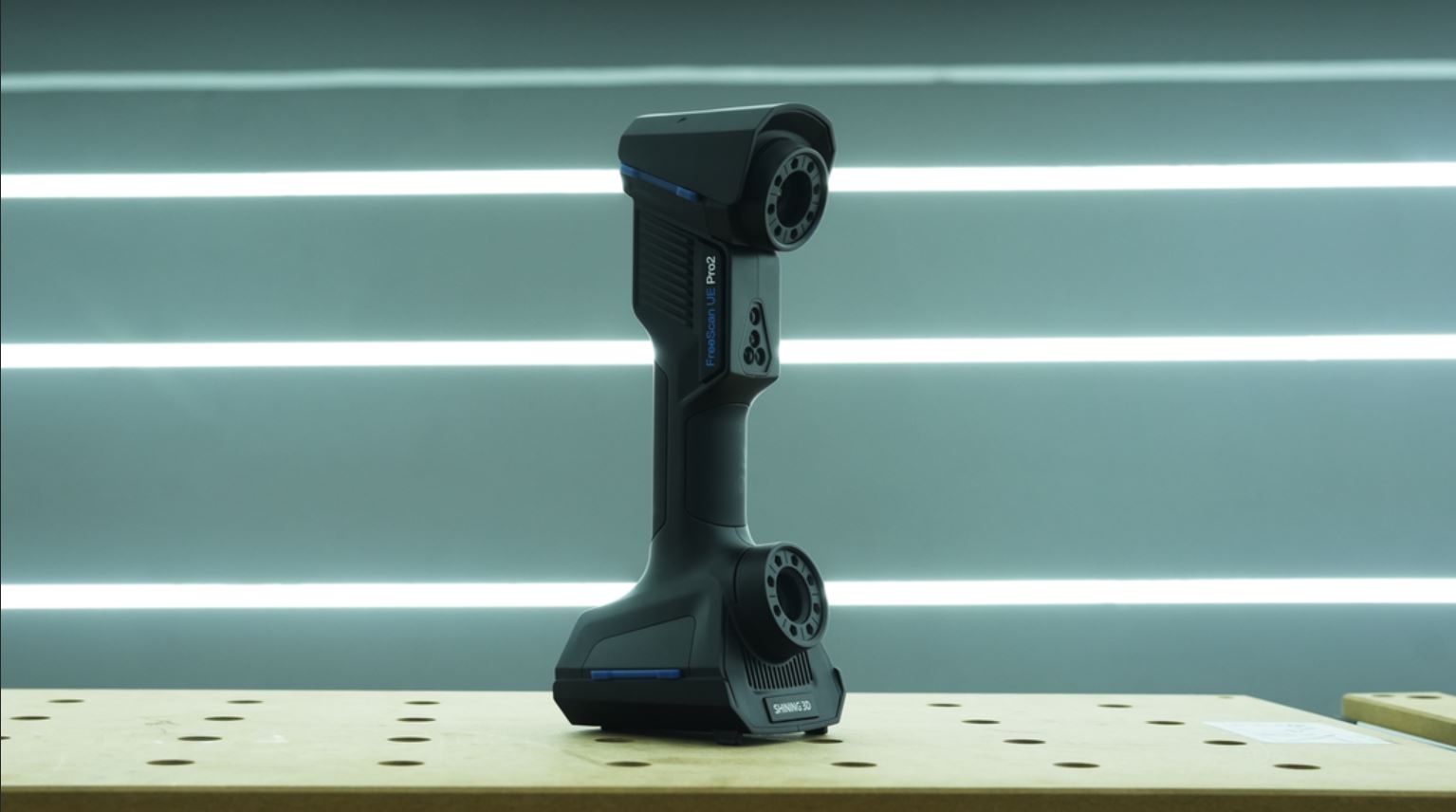

Technical Data of the FreeScan UE Pro 2
High-speed Scanning 50 laser lines
Detailed Scan 7 parallel laser lines
Deep Pockets 1 single line
Accuracy 0.02 mm
Volumetric Accuracy (Photogrammetry) 0.02 mm + 0.015 mm/m
Max. FOV 600 x 550 mm
Scan Speed 3,460,000 points/s
Point Distance 0.01 ~ 10 mm
Acceptance test VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab)
Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
