Dynamic tracking
-
Marker-free scanning
freescan UE nova features
Large-Scale Scanning Coverage
With an extra-large FOV of 2.6 × 2.2 m and a maximum scanning distance of 2.6 m, it is ideal for large-scale projects.
Ultra-Fast Scan Speed
50 laser lines for rapid scanning, enabling fast data capture and significantly reducing scanning time.
Flexible FOV
Offers the flexible field of view depending on 3 selectable working range, adapt to different on-site operation conditions.
Integrated Video Photogrammetry
Utilizing SHINING 3D’s patented video-based photogrammetry without coded markers.
FreeScan Trak Software
Multi-Scan Modes Data Fusion
The system seamlessly combines wide-range laser scanning for overall structure capture with dynamic tracking for detailed local features, integrating broad coverage and fine details into a unified dataset.
Intelligent Resolution
Automatically adjusts mesh resolution based on the object’s curvature, ensuring clearer and more detailed features.
AI Feature Recognition
Intelligent boundary detection enables fast, accurate scanning and measurement of round and square holes, delivering high-accuracy hole data.
Inspection Module
Integrated inspection module, certified by PTB, for reliable, high-quality full-size inspection.

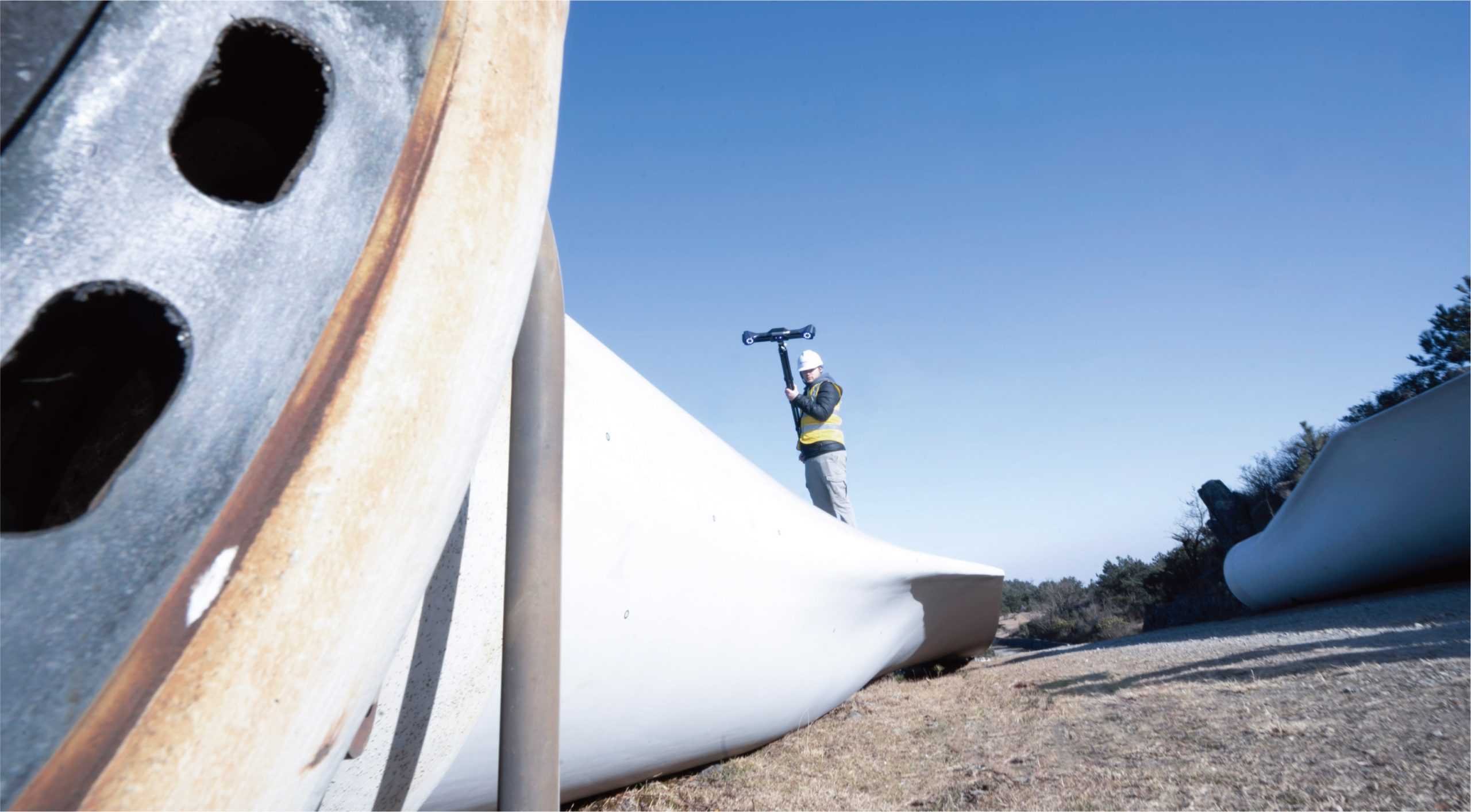

Wide-Range Laser Scan: Vast and Fast
FreeScan UE Nova offers expansive coverage, delivering unparalleled efficiency and flexibility.
- Large-scale scanning coverage: FOV of 2.6 × 2.2 m
- Maximum scanning distance of 2.6 m
50 Laser Lines for rapid scanning, enabling fast data capture and significantly reducing scanning time.

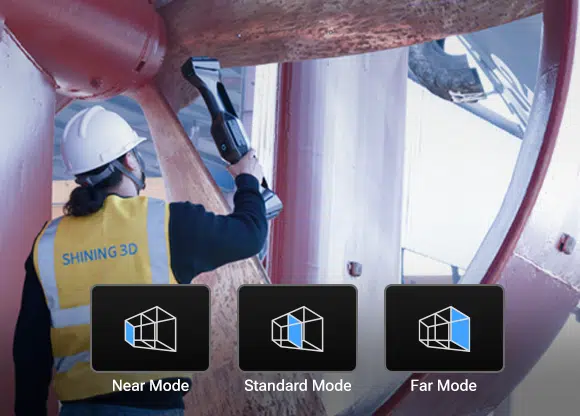

Flexible FOV
FreeScan UE Nova offers the flexible field of view depending on three selectable working range, adapt to different on-site operation conditions.
- Near Mode (300 ~ 800 mm): For detailed work in tight spaces, allowing to capture intricate precise details.
- Standard Mode (600 ~ 1500 mm): For general-purpose scanning tasks, offering a balanced range for both speed and details performance.
- Far Mode (1200 ~2600 mm): For very large-scale objects, enabling you to cover expansive areas quickly.
Free to Scan, Built to Perform
- Integrated Wireless Modules: ensure real-time data transmission with high frame rates and stability.
- Swappable Batteries: features detachable and hot-swappable batteries for continuous scanning during long-time projects or in remote locations.
- Built-In Computing Modules: enable rapid and efficient processing. These onboard capabilities ensure fast, reliable results on the go.
Keep Going with Swappable Batteries
For maximum convenience, FreeScan UE Nova features detachable batteries for extended scanning time. Easily swap out batteries to keep your workflow uninterrupted, even during long projects or in remote locations.
Video Photogrammetry (VPG)
FreeScan Trak Nova system features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.

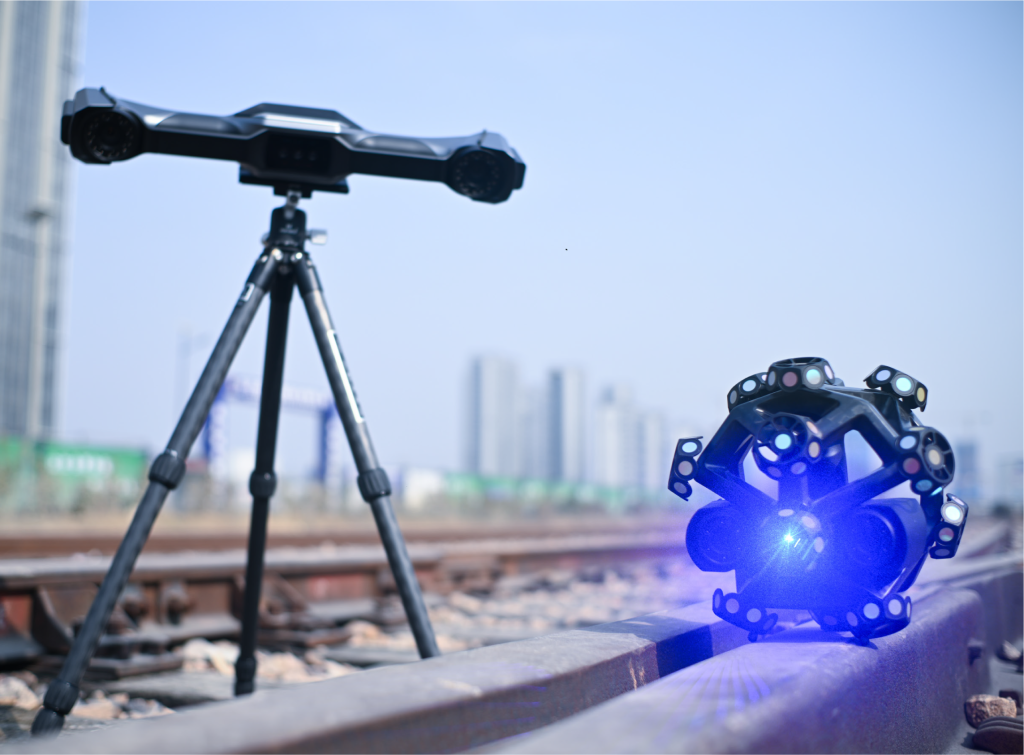

Expand Possibilities with Trak Nova
Elevate your capabilities and tackle even the most complex work environments with FreeScan Trak Nova. Click below to discover more!
Technical Data of the FreeScan UE Nova
Volumetric accuracy with VPG 0.072 + 0.012 mm/m
Flexible FOV Up to 2600 x 2200 mm
VPGIncluded (no coded markers required)
FOV indicator of VPG Included
High-speed scan Included
Detailed scan Included (support near mode)
Depth of field 2300 mm (300 ~ 2600 mm)
Connection Wireless & Wired mode (fiber optic)
Acceptance test VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab)
Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
