freescan Trio features
Speed and Efficiency Redefined
The Power of Three 5MP Cameras
With three industrial cameras, each wielding 5MP, the FreeScan Trio brings out the most elaborate details and high-quality 3D data.
Certified and Guaranteed Results
Under the scan modes with markers, the FreeScan Trio consistently provides high-precision scanning results with an accuracy of 0.02 mm.

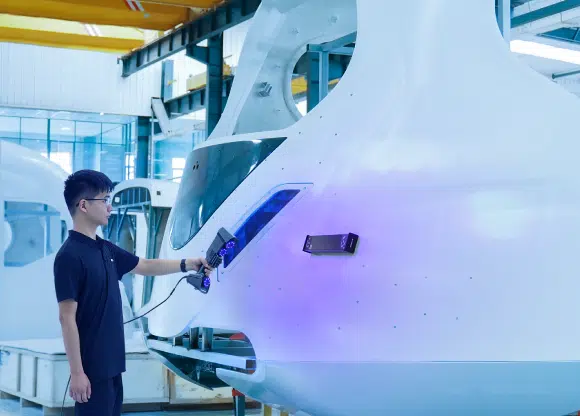

Quick On-Site Inspection
Simplify operations and enhance fast quality check for various on-site inspection tasks.
FreeScan Software
Real-Time Display of Mesh Data
Our streamlined software displays mesh data in real time during the scanning process, enhancing visual quality and saving time on meshing later.
Customised Scanning Template
Save time and ensure consistency by setting up your own scanning template. No need to set parameters manually.
Data Quality Visualization
Users can monitor scanning distance through laser line color or the LED indicator, and assess data quality with the real-time mesh indicator.
Flexible Resolution
EXScan enables you to change the resolution later according to your needs, without having to restart the project.
Intelligent Self-Positioning Technology
- No Markers Scan Mode
FreeScan Trio introduces advanced intelligent self-positioning technology to streamline the scanning process. With 98 laser lines, it eliminates the need for markers, and achieves a fast scan speed of up to 3,010,000 points per second.

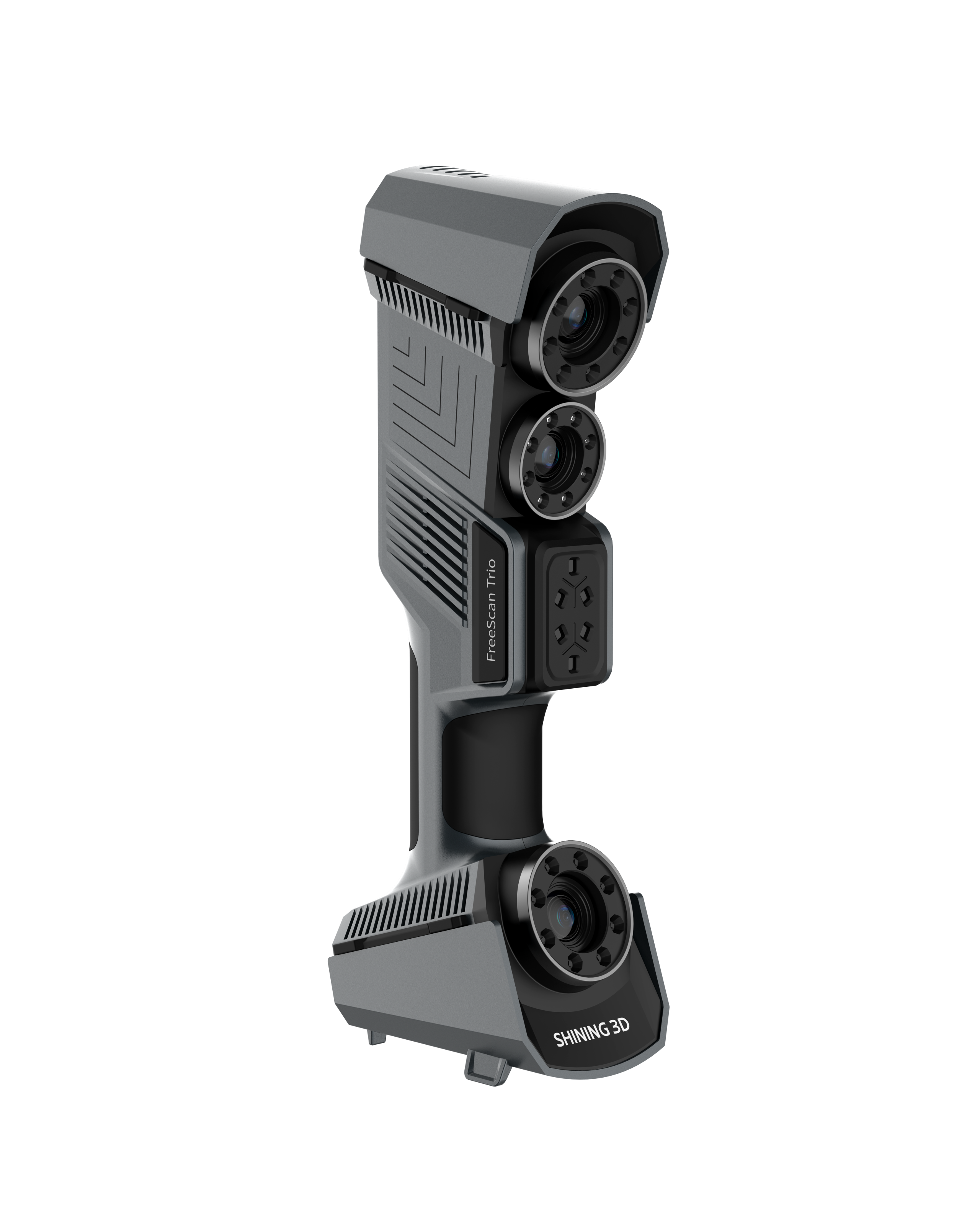

- 3 Industrial 5MP Cameras
With three industrial cameras, each wielding 5MP, FreeScan Trio brings out the most elaborate details and high-quality 3D data.

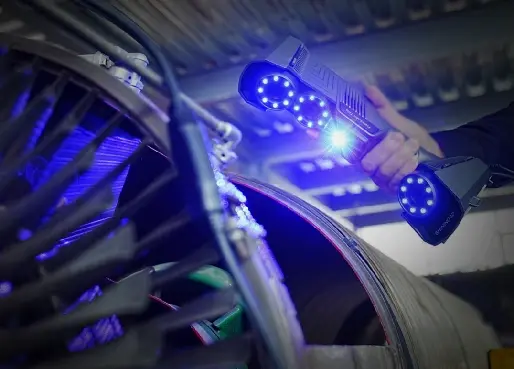

Perfect High Details Capture

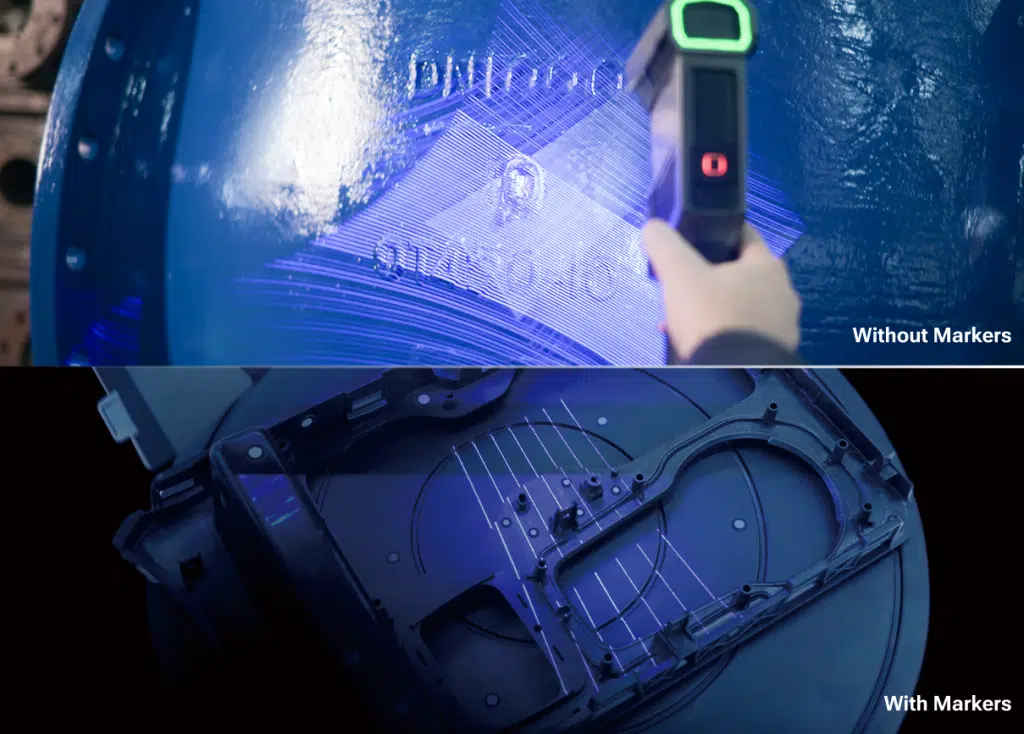

FreeScan Trio delivers exceptional high-details capture, ensuring intricate data acquisition with or without markers.
Video Photogrammetry (VPG)
FreeScan Trio features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
Technical Data of the FreeScan Trio
High Speed Scan
26 laser lines
Detailed Scan
7 parallel laser lines
Deep Hole Scan
26 / single laser lines
No Markers Scan
98 laser lines
Large Parts
Photogrammetry mode, no coded markers required
Accuracy
0.02 mm
Volumetric Accuracy
0.02 + 0.015 mm/m (with photogrammetry)
Scan Speed
Up to 3,010,000 points/s
Max. FOV
650 x 580 mm
Point Distance
0.01 ~ 3 mm
Certifications
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
Accuracy Certification
VDl/VDE 2634 Part 3 (ISO 17025 certificated lab)
