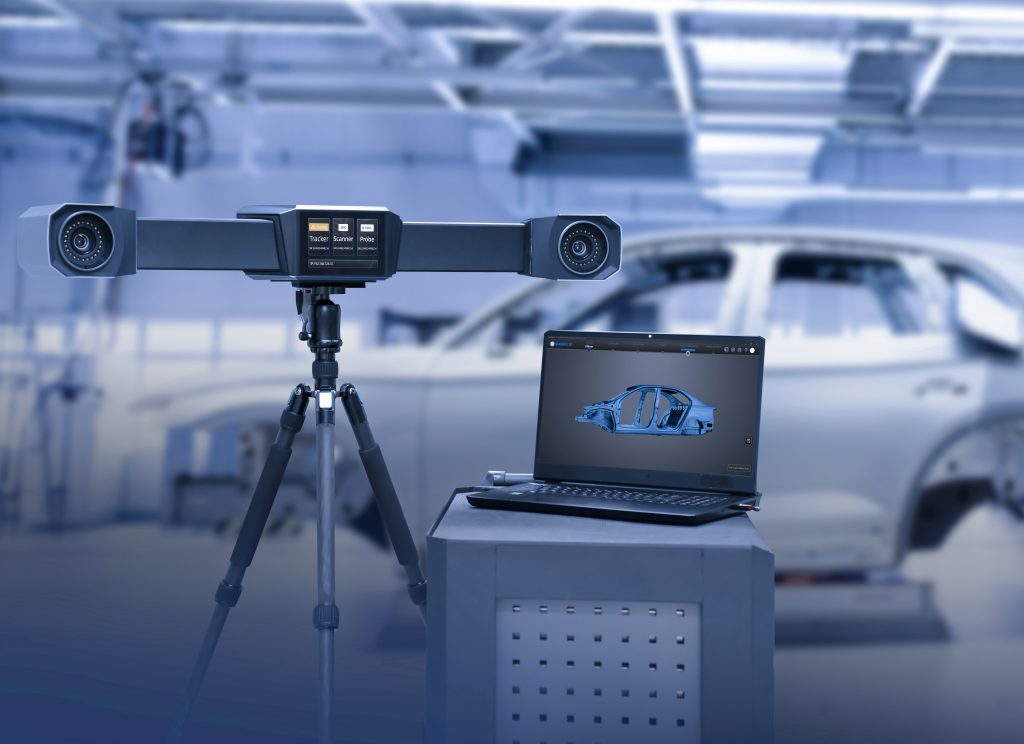

freescan trak pro w features
No Markers Needed
The FreeTrak W dynamically tracks the TE25W scanner using its tracking targets, eliminating the need to manually place markers on the scanned object.
Fast Paced Scanning
FreeScan Trak ProW enables fast paced and smooth scanning tasks with a scan speed up to 5,500,000 points/s.
Exceptional Accuracy
FreeScan Trak ProW delivers metrology-grade scanning results with exceptional accuracy.
3 Modes for Versatile Applications
The TE25W features 3 scanning modes: High-speed scanning, Detailed scanning, Deep pockets scanning.
FreeScan Trak Software
Multi-Scan Modes Data Fusion
The system seamlessly combines wide-range laser scanning for overall structure capture with dynamic tracking for detailed local features, integrating broad coverage and fine details into a unified dataset.
Intelligent Resolution
Automatically adjusts mesh resolution based on the object’s curvature, ensuring clearer and more detailed features.
AI Feature Recognition
Intelligent boundary detection enables fast, accurate scanning and measurement of round and square holes, delivering high-accuracy hole data.
Inspection Module
Integrated inspection module, certified by PTB, for reliable, high-quality full-size inspection.
Ultra-Wide Measuring Range

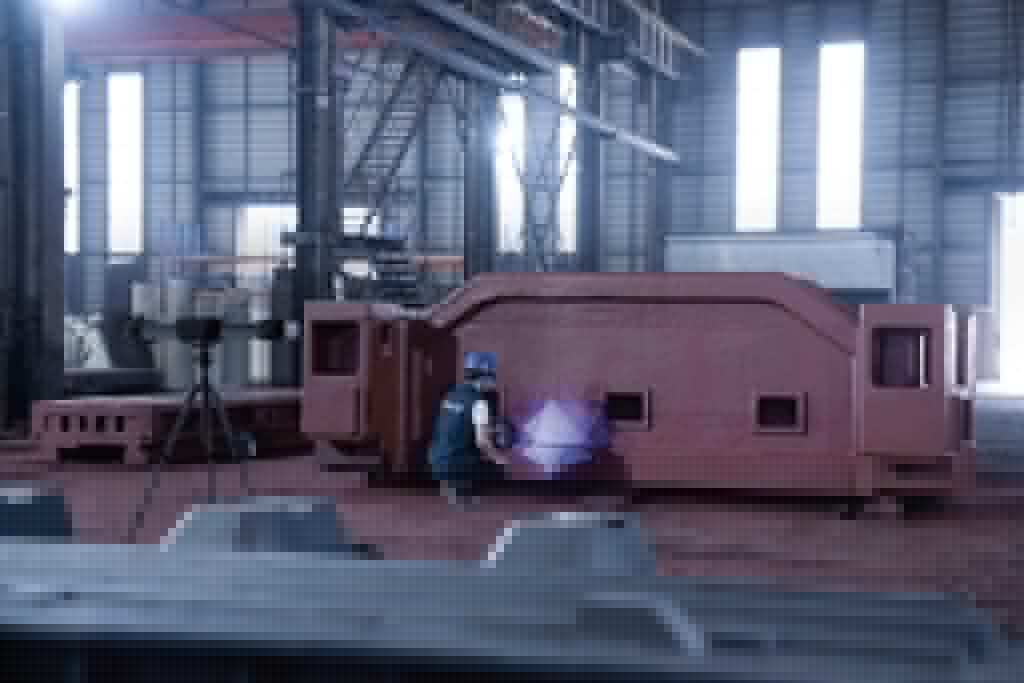

FreeScan Trak ProW features a groundbreaking design with an ultra-long 8.6 m tracking distance and widely expands the single-station tracking volume to 206.7 m³, significantly reducing the need for leapfrog* during large-scale object scanning.
*(1) Leapfrog: Refers to the technique of relocating the measuring device to extend its working volume. This involves measuring reference geometries (artifacts) in one position, then repositioning the device and measuring the same reference geometries again. These reference points establish a link between the new device position and the original coordinate system, allowing measurements to be consistently reported in the same reference frame.

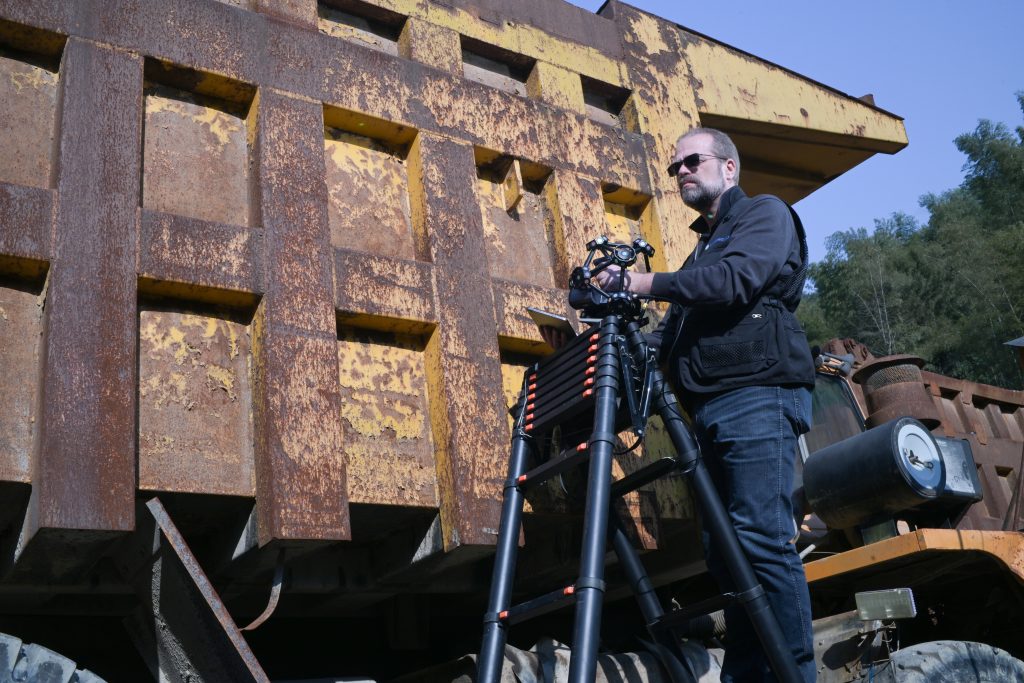

Wireless Scanning Wherever You Go
-
FreeScan Trak ProW delivers fast, wireless scanning anywhere. Its cable-free design enables real-time data transfer, with power bank support for unrestricted mobility. An integrated screen ensures seamless operation.
- Built-In Computing Modules
- Integrated Wireless Modules
- Flexible Power Supply
- Real-Time Display Screen
No Markers Needed,
Fast Paced Scanning
FreeTrak W enables real-time TE25W scanner recognition and positioning, eliminating the need for reference markers, which enhances scanning efficiency and streamlines the workflow, while ensuring rapid data acquisition with a scanning speed of up to 5,500,000 points per second.
Video Photogrammetry (VPG)

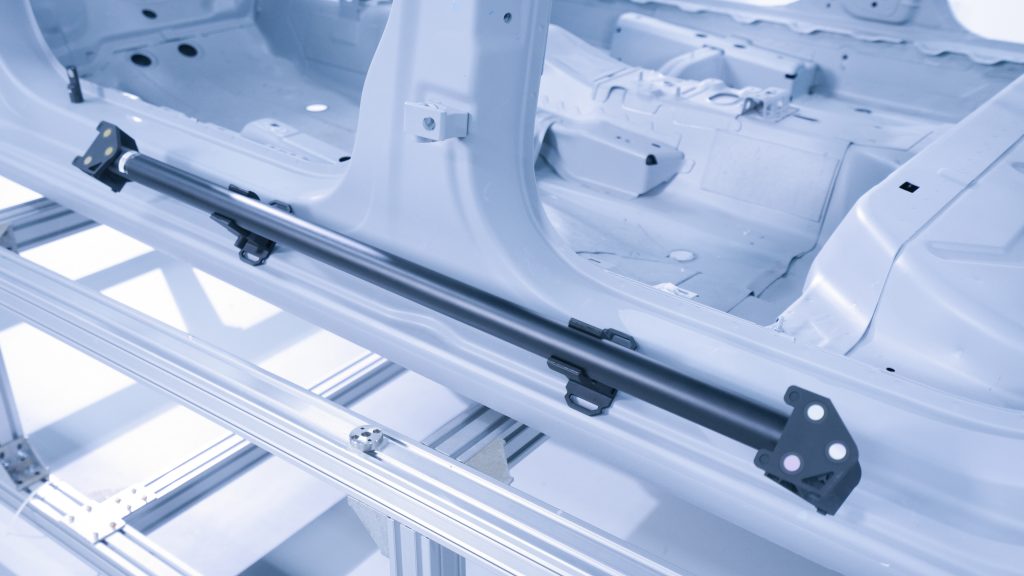

FreeScan Trak ProW features SHINING 3D’s patented video-based photogrammetry, which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
FreeProbe (Optional)
- Ergonomic design for easy grip and use
- Sturdy structure for enhanced durability and measurement accuracy
- Multi-functional button for versatile functionality
- Seamless integration with mainstream industrial inspection software
Designed for quick measurements and inspections, the FreeProbe captures precise geometric data without generating mesh. It is ideal for hidden areas the scanner cannot reach, ensuring data acquisition with pinpoint accuracy.
