Large tracking range
freescan trak pro 2 features
No Markers Needed
The FreeTrak W dynamically tracks the TE25W scanner using its tracking targets, eliminating the need to manually place markers on the scanned object.
3 Options of Laser Line Modes
The scanner features 50 crossed laser lines for quick and highly accurate scans, 7 parallel laser lines for partial HD scans with extremely fine details, and 1 single laser line for deep hole scanning with a hole diameter to depth ratio of 1:4.
Exceptional Accuracy
FreeScan Trak Pro2 delivers metrology-grade scanning results with exceptional accuracy, reaching 0.023mm.
Wide Measuring Range
FreeScan Trak Pro2’s wide and expandable tracking range allows measurement of a broad spectrum of volumes and surfaces without compromising accuracy or requiring traditional leapfrogs in the scanning process.
FreeScan Trak Software
Multi-Scan Modes Data Fusion
The system seamlessly combines wide-range laser scanning for overall structure capture with dynamic tracking for detailed local features, integrating broad coverage and fine details into a unified dataset.
Intelligent Resolution
Automatically adjusts mesh resolution based on the object’s curvature, ensuring clearer and more detailed features.
AI Feature Recognition
Intelligent boundary detection enables fast, accurate scanning and measurement of round and square holes, delivering high-accuracy hole data.
Inspection Module
Integrated inspection module, certified by PTB, for reliable, high-quality full-size inspection.
*Available at additional cost

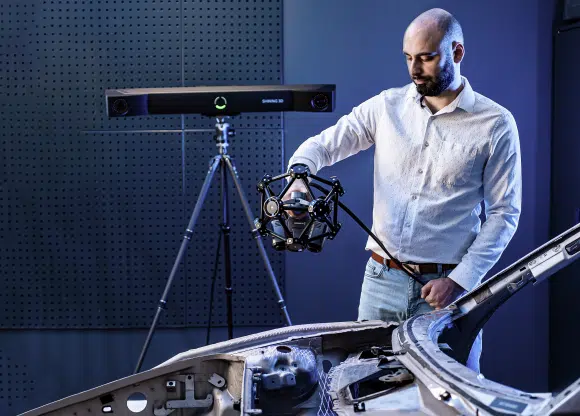

Dynamic Referencing, No Markers Needed

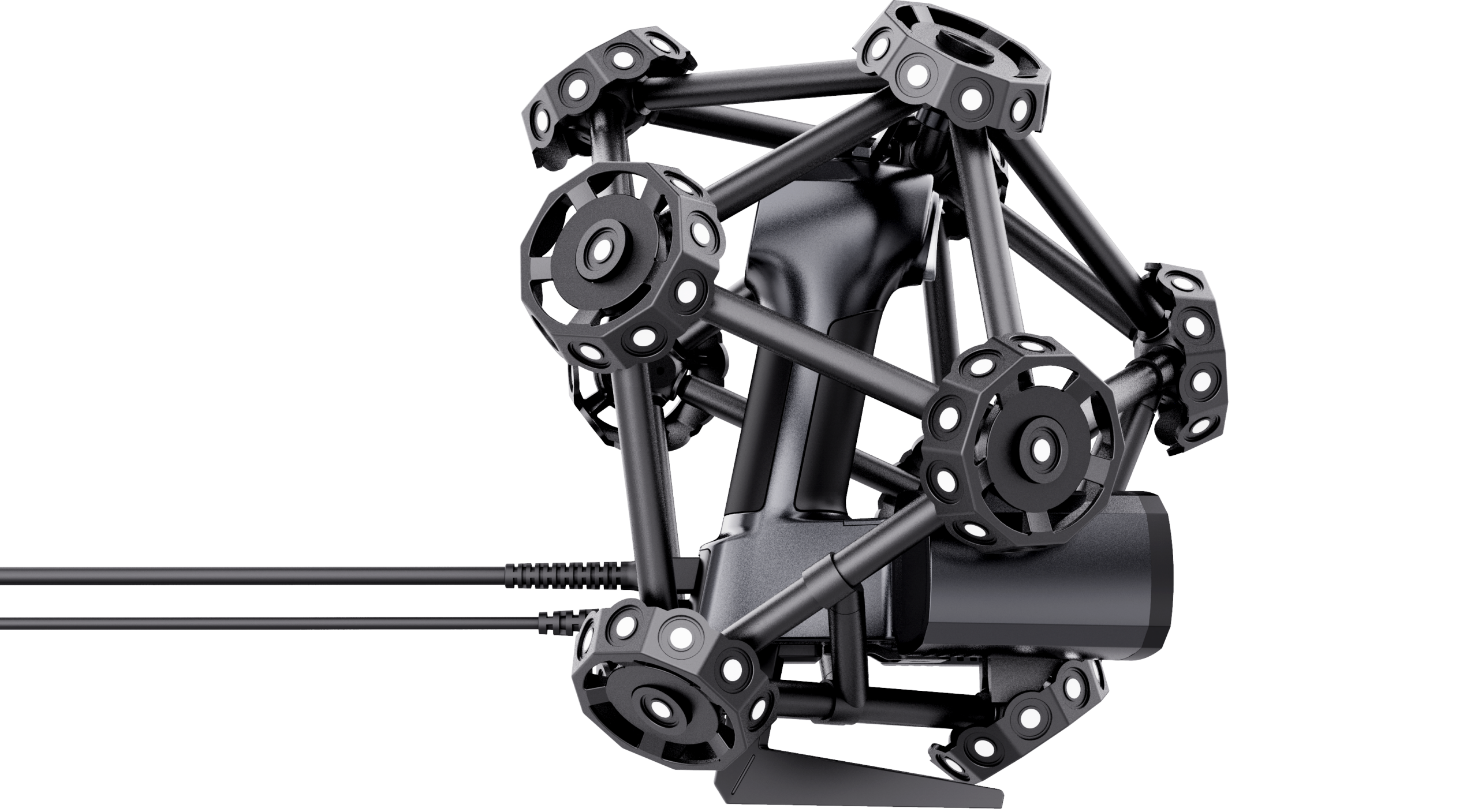

The FreeTrak dynamically tracks the TE25 scanner using its tracking markers, eliminating the need to manually place markers on the scanned object. This markerless operation saves time and makes the 3D scanning process much smoother.
Exceptional Accuracy
- The FreeScan Trak Pro2 delivers metrology-grade scanning results with exceptional accuracy, reaching 0.023 mm*.
*Based on VDI/VDE 2634, sphere-spacing error is assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume, in an accuracy lab certified with ISO/IEC 17025:2017, under environmental conditions of 20 ± 0.5°C temperature and 40-60% RH humidity.

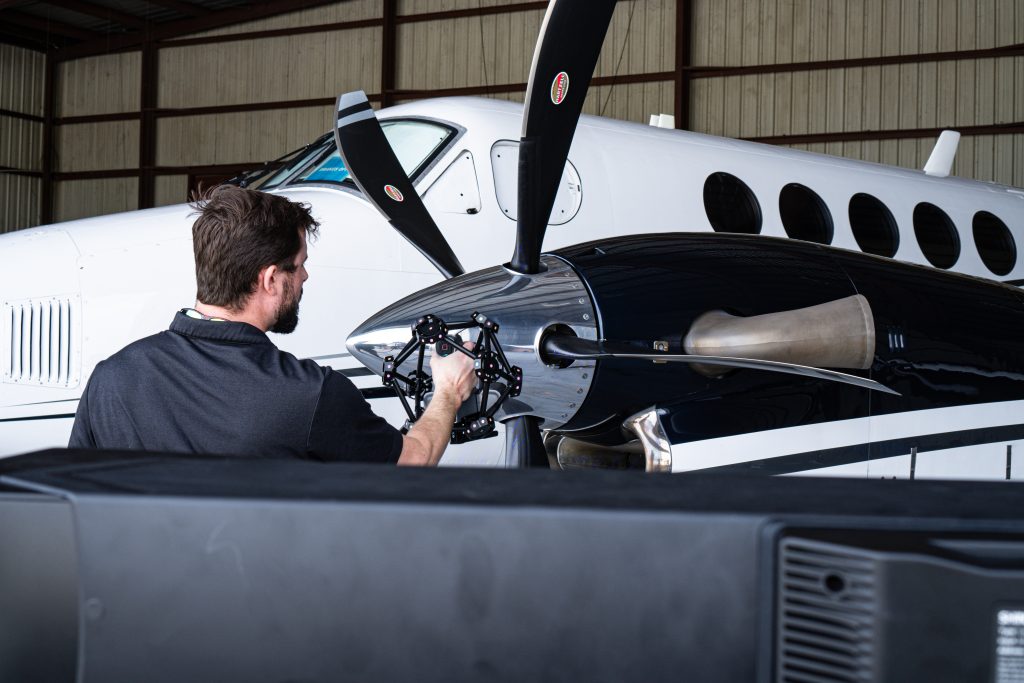

Wide Measuring Range
The FreeScan Trak Pro2’s wide and expandable tracking range allows the measurement of a broad spectrum of volumes and surfaces without compromising accuracy or requiring traditional leapfrogging in the scanning process.
Supports Both Optical Tracking and Marker Scanning
Switch between these two modes based on your requirements and the type of object to scan. This duality offers the flexibility to cover a wider range of applications and surface types.

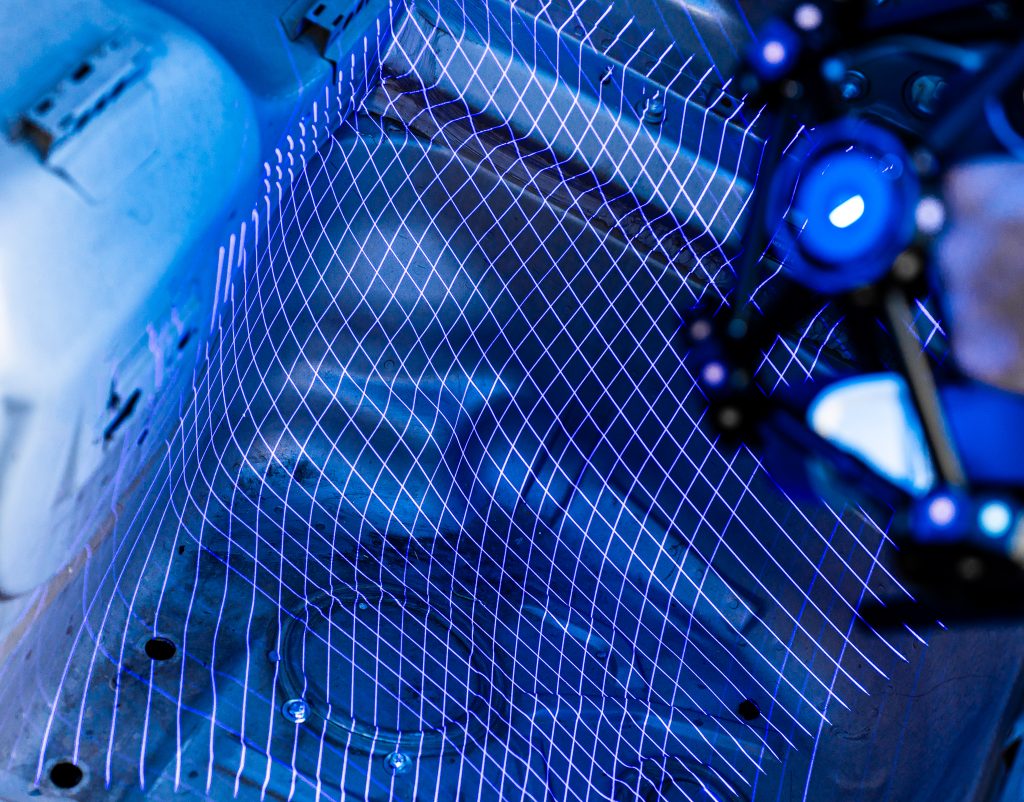

High-Speed Scanning
Paired with its 50 blue laser lines, the FreeScan Trak Pro2’s two industrial-grade cameras, each with 5.0MP resolution, enable ultra-high-speed data acquisition for a smooth scanning experience.
FreeProbe (Optional)
- Ergonomic design for easy grip and use
- Sturdy structure for enhanced durability and measurement accuracy
- Multi-functional button for versatile functionality
- Seamless integration with mainstream industrial inspection softwareDesigned for quick measurements and inspections, the FreeProbe captures precise geometric data without generating mesh. It is ideal for hidden areas the scanner cannot reach, ensuring data acquisition with pinpoint accuracy.
